Vulcanising the outsoleCarbon rubber, 65 Shore A
0

Soles and technical components
Elche, Spain, since 1974

Technical soles and components for brands that make shoes for hard ground.

We develop, mould and test every layer under the foot in our plant in Elche. Catalogue soles ship as sample pairs in 10 days, a new tread in four weeks.

From the ground up.

Stack at the toe
29 mm

A family plant in Elche

We have made the part of the shoe nobody sees since 1974. Compounds, moulds, soles and the pieces in between, all under one roof in Elche.

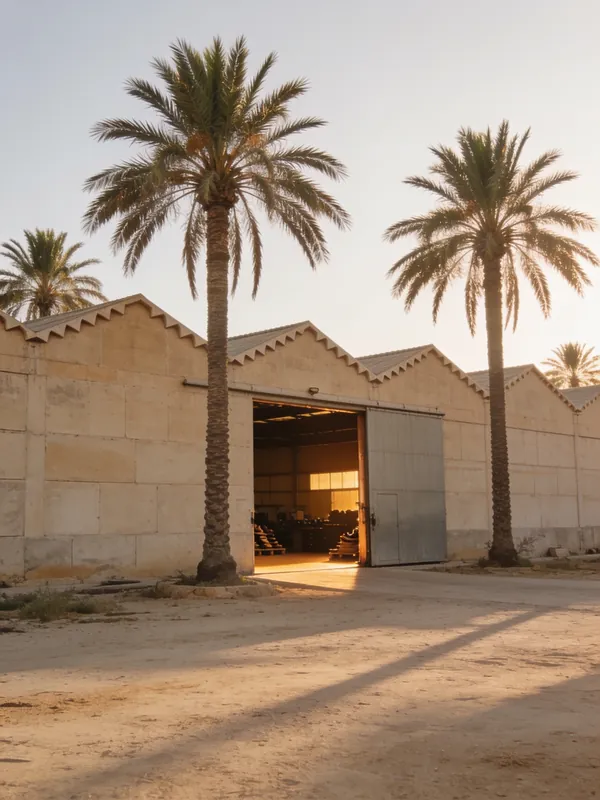

Our plant between the date palms of Elche, late afternoon.
Our plant in Carrús, Elche: 11,000 m² between the palm groves.

Three generations of the same family. Design, compounding, mould making, moulding, finishing and testing happen in one building, so a change to a compound can be in your hands within days, not months.

38compounds in production, mixed in Elche
2,400moulds in the archive, ready to reuse
140brands and factories in 22 countries
4 weeksfrom brief to sample pair with a new mould

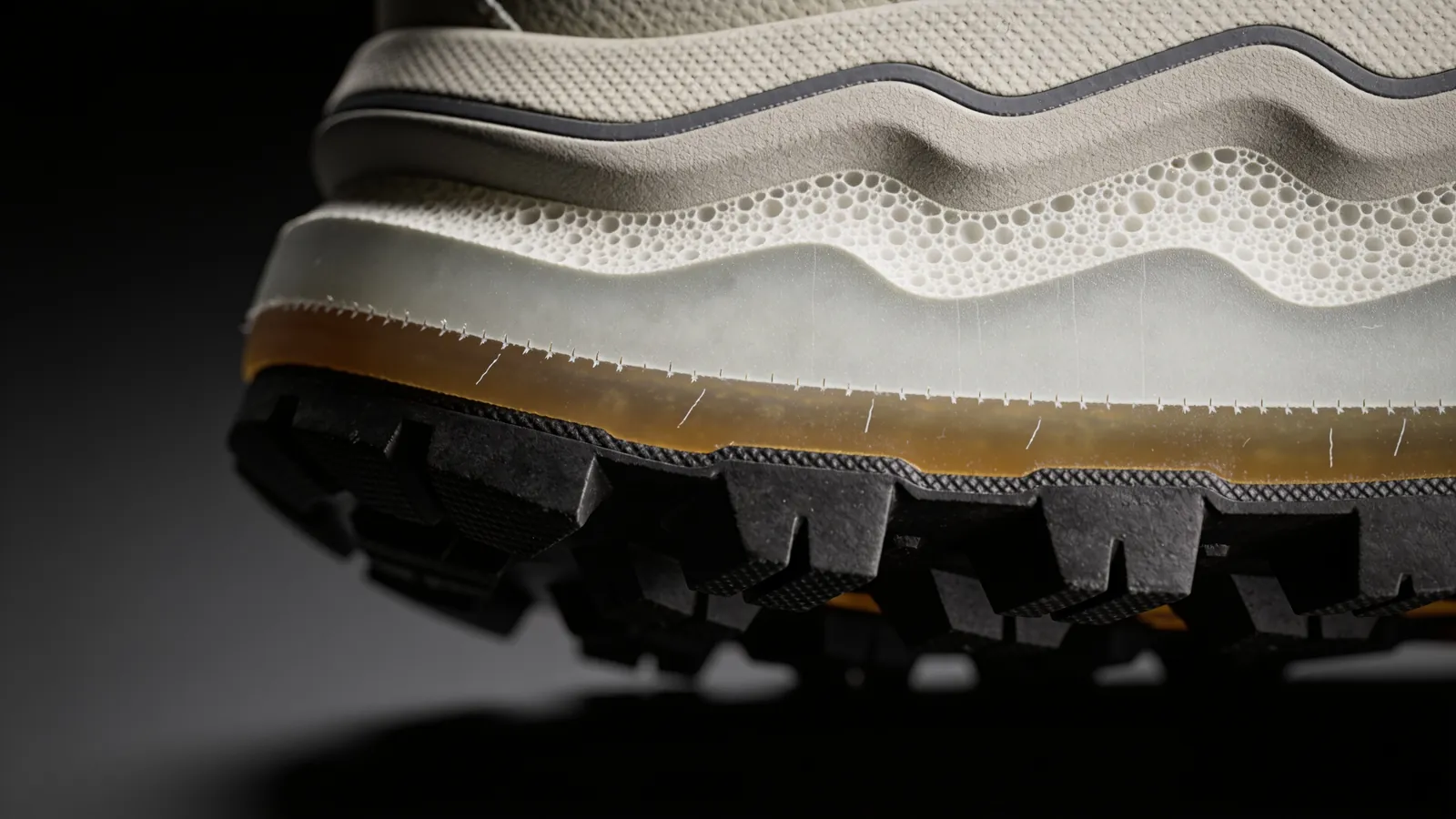

The stack

Everything between the foot and the ground.

A technical sole is four or five layers, each moulded for one job. We make all of them under one roof, so they are designed to bond, flex and wear together.

  1. 1OutsoleGrip and wear9 mm
  2. 2CarrierBonding and flex2 mm
  3. 3StabiliserTorsion3 mm
  4. 4MidsoleCushioning and rebound15 mm
  5. 5InsoleFit and climate4 mm
Midsole and stabiliserSupercritical EVA, 0.16 g/cm³, rebound 68 %. A translucent TPU frame that keeps the heel from twisting on uneven ground.
CarrierGum rubber. It bonds the foam to the rubber and lets the forefoot flex.
OutsoleCarbon rubber, 65 Shore A, 5 mm lugs. Abrasion 90 mm³, wet grip to EN ISO 20345 SR.
InsoleOpen-cell PU, perforated and washable. It sits on top, inside the shoe.

Components

What goes under the foot.

Everything in our catalogue can be ordered as it is, in your compound and colour, or used as the starting point for a sole of your own.

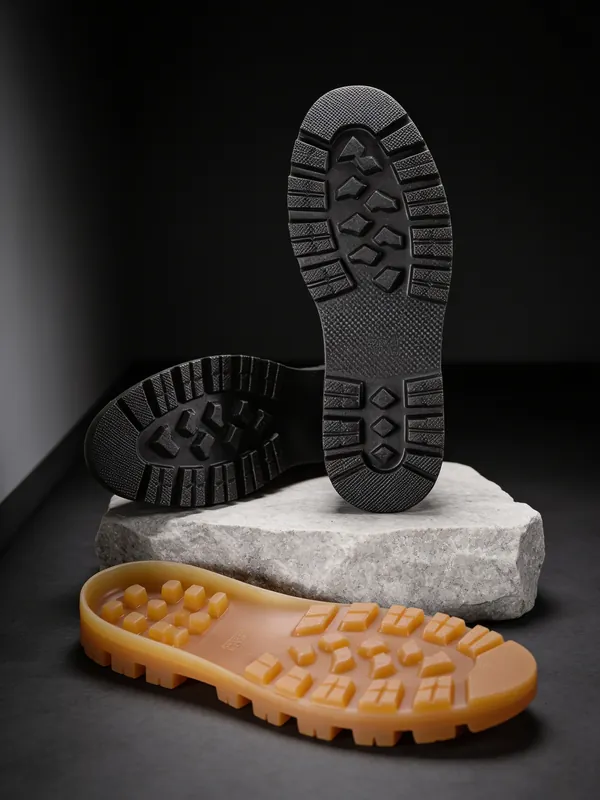

Outsoles

Carbon, gum, recycled and non-marking rubber, TPU. Lugs from 3 to 6 mm, cemented, stitched or vulcanised.

420 references

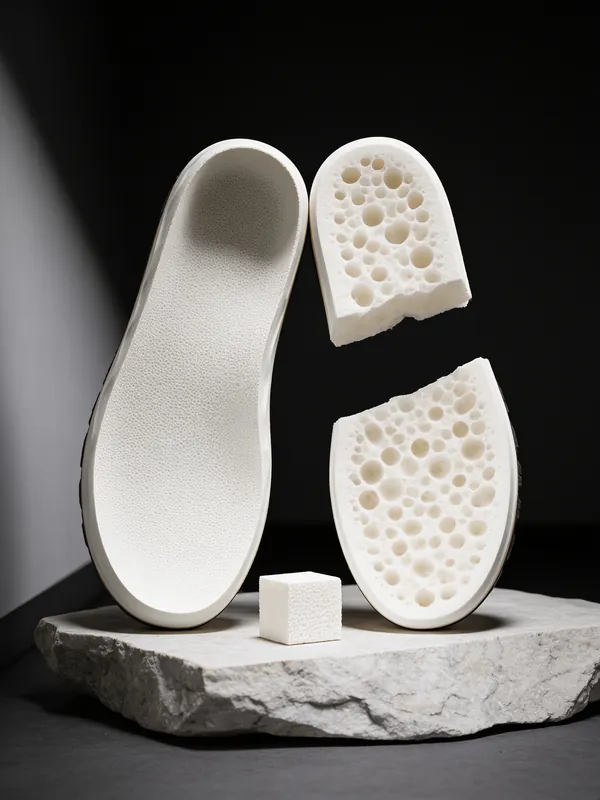

Midsoles

EVA, supercritical EVA and PU, in one or two densities, moulded around your last.

180 references

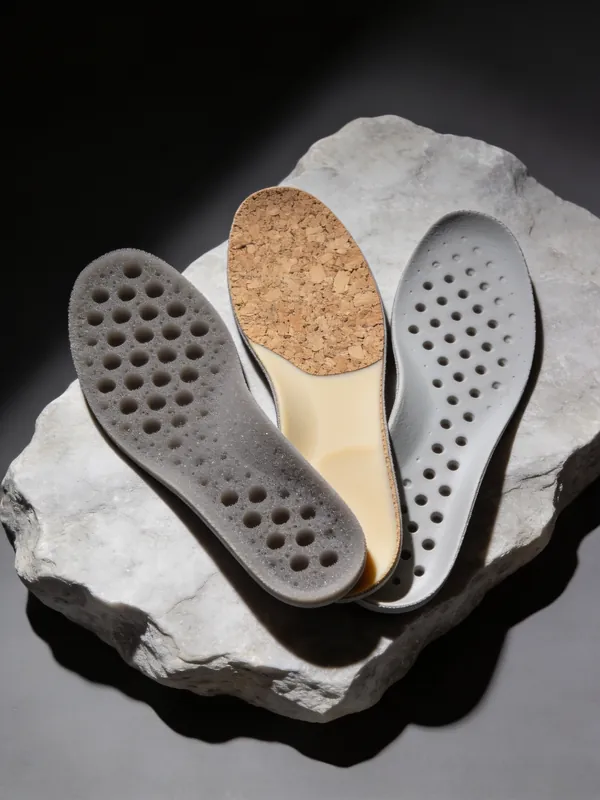

Insoles

Open-cell PU, cork and latex, moulded EVA. Perforated, washable and antistatic on request.

95 references

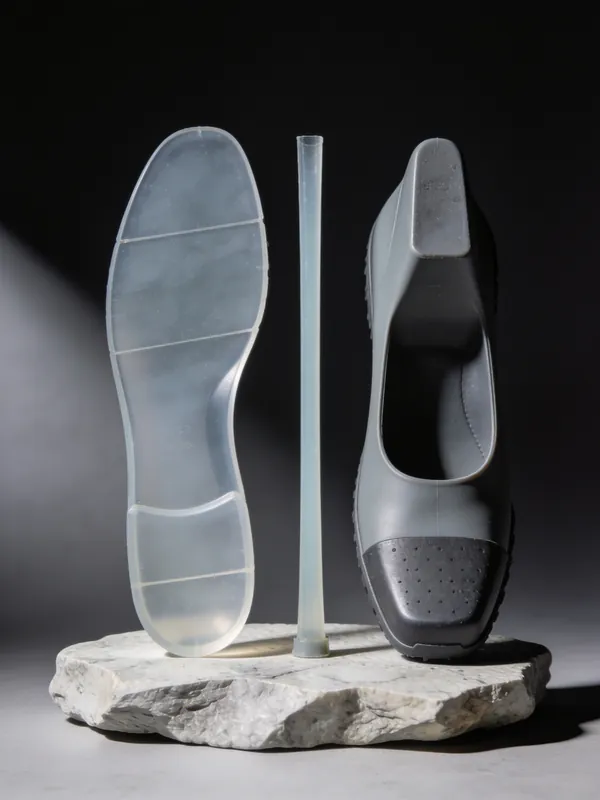

Structure

Rock plates, shanks, heel counters and composite toe caps for safety footwear.

60 references
755 references, all available as sample pairs.Ask for the catalogue, PDF, 18 MB

Footwear

Wet rock, mud and long descents.

  • Carbon rubber 65 A, 5 mm chevron lugs
  • Gum carrier, 2 mm
  • TPU rock plate
  • Supercritical EVA, 15 mm

Wet grip tested to EN ISO 20345 SR on our own tile rig.

01 / 04

Compounds and lab

We mix our own rubber.

Every compound has a card with its hardness, density and abrasion, and every batch is tested before it goes into a mould. Ask for the plaques with your sample and feel them before you choose.

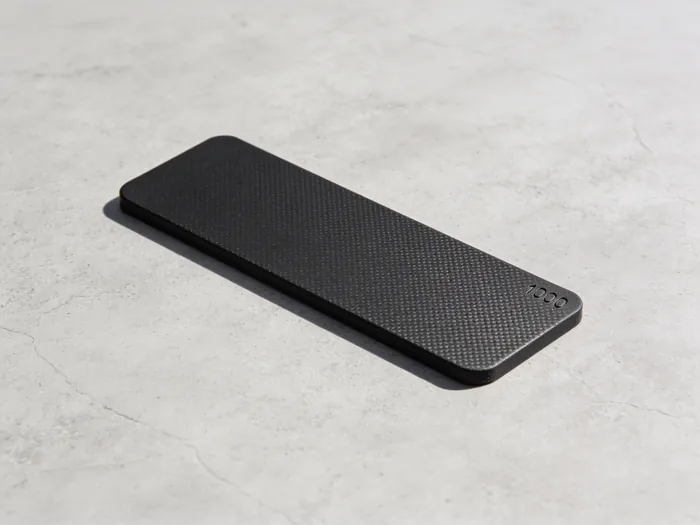

CR-65Carbon rubber sample plaque

Carbon rubberTrail and hiking outsoles

Hardness
65 Shore A
Density
1.14 g/cm³
Abrasion, ISO 4649
90 mm³

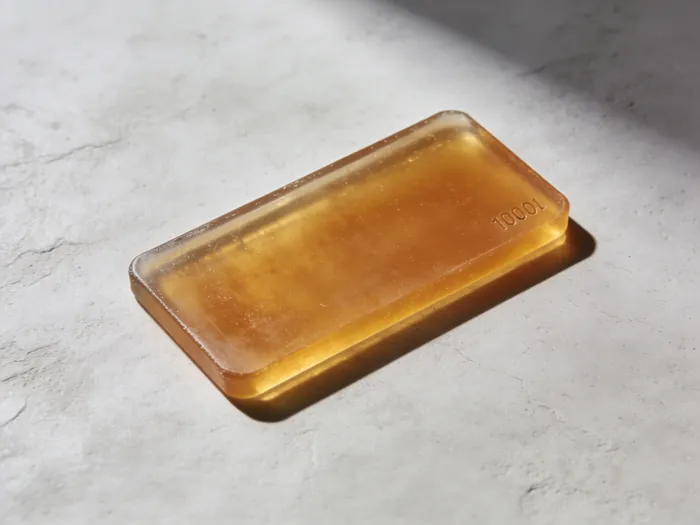

GR-55Gum rubber sample plaque

Gum rubberCity cupsoles and carriers

Hardness
55 Shore A
Density
1.05 g/cm³
Abrasion, ISO 4649
140 mm³

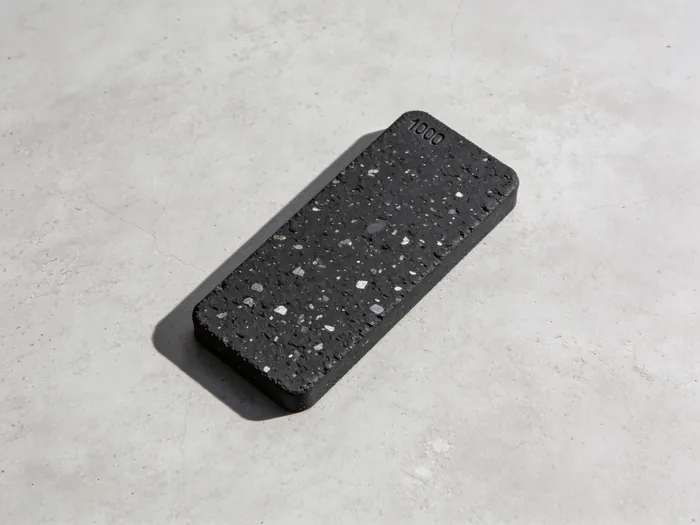

RR-62Recycled rubber sample plaque

Recycled rubber30 % post-industrial rubber

Hardness
62 Shore A
Density
1.18 g/cm³
Abrasion, ISO 4649
120 mm³

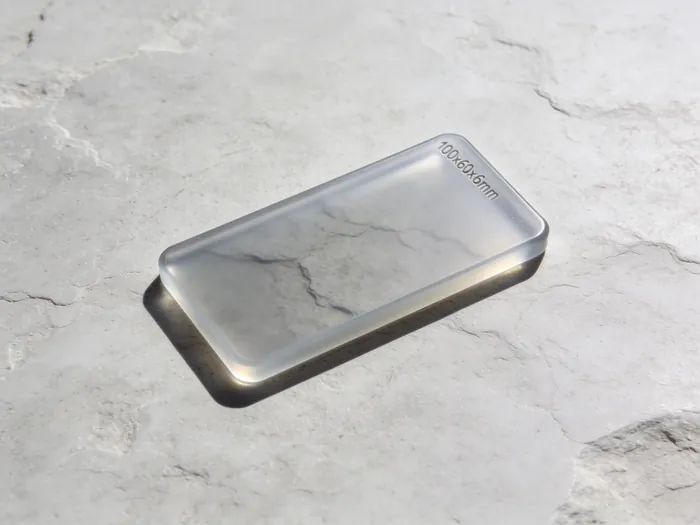

TP-85TPU sample plaque

TPUPlates, heel counters, logos

Hardness
85 Shore A
Density
1.20 g/cm³
Abrasion, ISO 4649
30 mm³

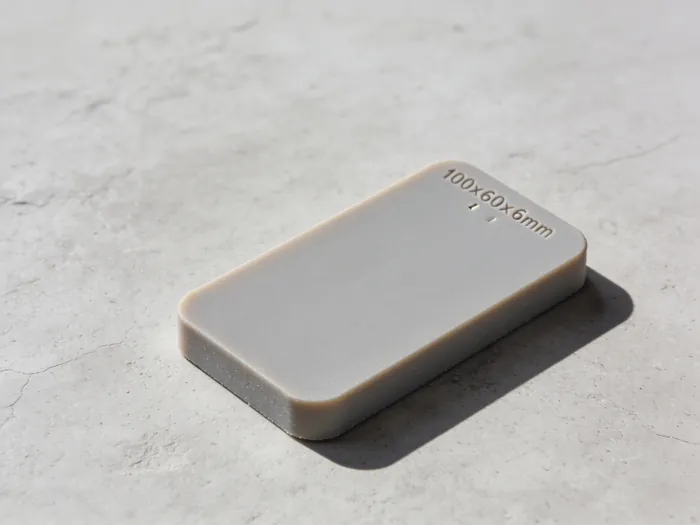

NM-60Non-marking rubber sample plaque

Non-marking rubberIndoor, kids and sport

Hardness
60 Shore A
Density
1.10 g/cm³
Abrasion, ISO 4649
110 mm³

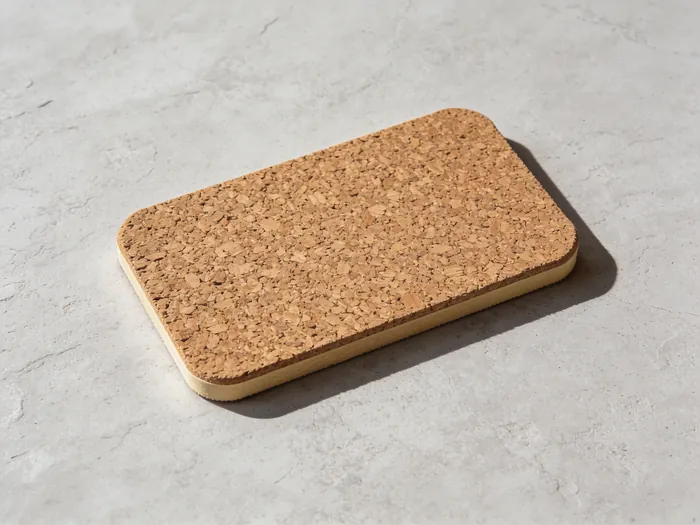

CL-45Cork and latex sample plaque

Cork and latexInsoles and footbeds

Hardness
45 Shore A
Density
0.32 g/cm³
Abrasion, ISO 4649
Not tested

Tested before it leaves

Results go with every sample pair

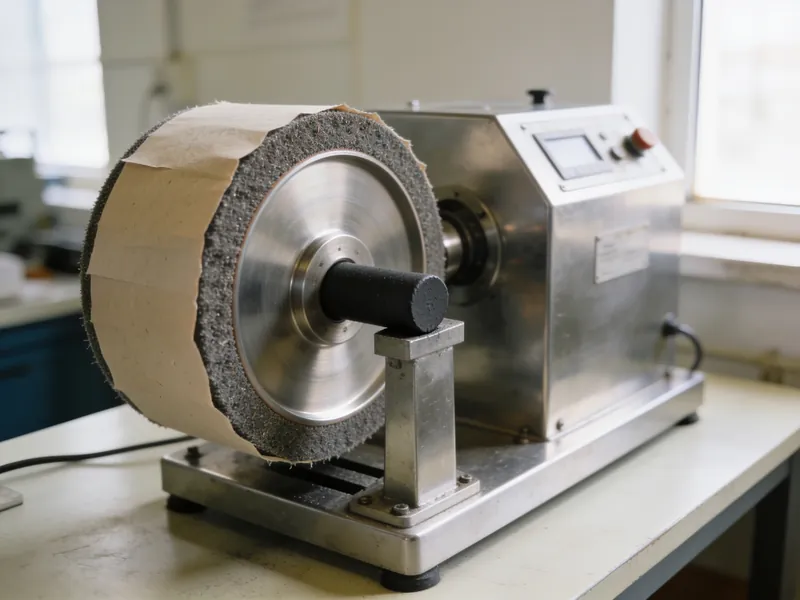

Abrasion test in our lab

AbrasionISO 4649

A rotating drum wears a sample down; we report the volume lost in mm³.

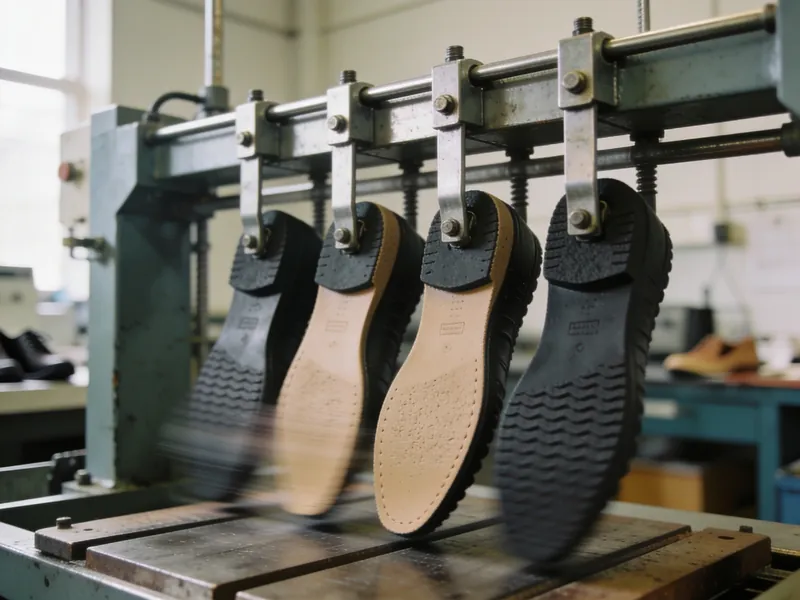

Flex test in our lab

FlexEN ISO 17707

30,000 bends at the forefoot before a sole leaves the lab.

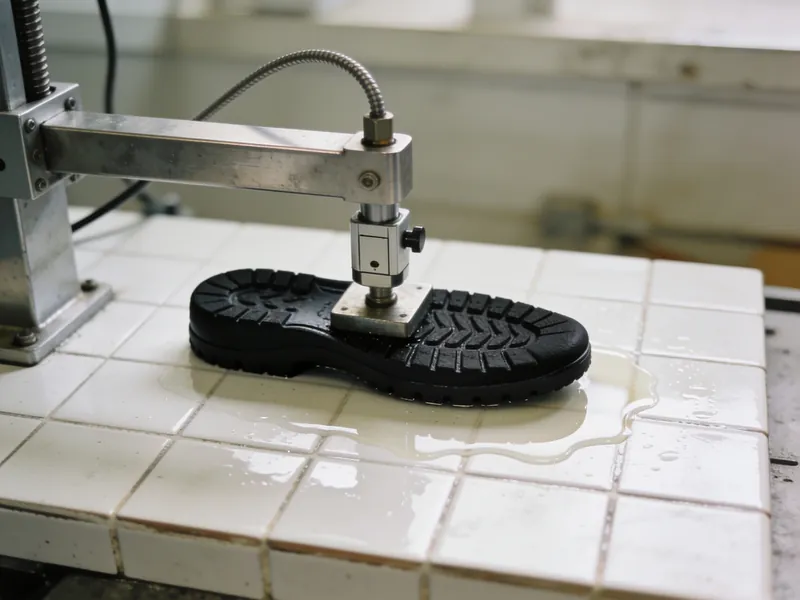

Slip test in our lab

SlipEN ISO 13287

Ceramic tile with detergent and glycerine, for the SR mark.

Development

From your sketch to the production run.

  1. 1. Brief

    Your last, the use and a target weight. We reply within 48 hours.

    Week 0
  2. 2. Tread and 3D

    We draw the tread and model the sole around your last.

    Weeks 1–2
  3. 3. Sample mould

    An aluminium mould in one size, machined in our own workshop.

    Week 2
  4. 4. Sample pair

    Moulded in your compound and colour, tested and shipped.

    Week 4
  5. 5. Size run

    Once you approve the sample, we cut the full run of moulds, EU 35 to 48.

    Weeks 6–10
  6. 6. Production

    From 300 pairs per colour, with a test on every batch.

    Week 10 on

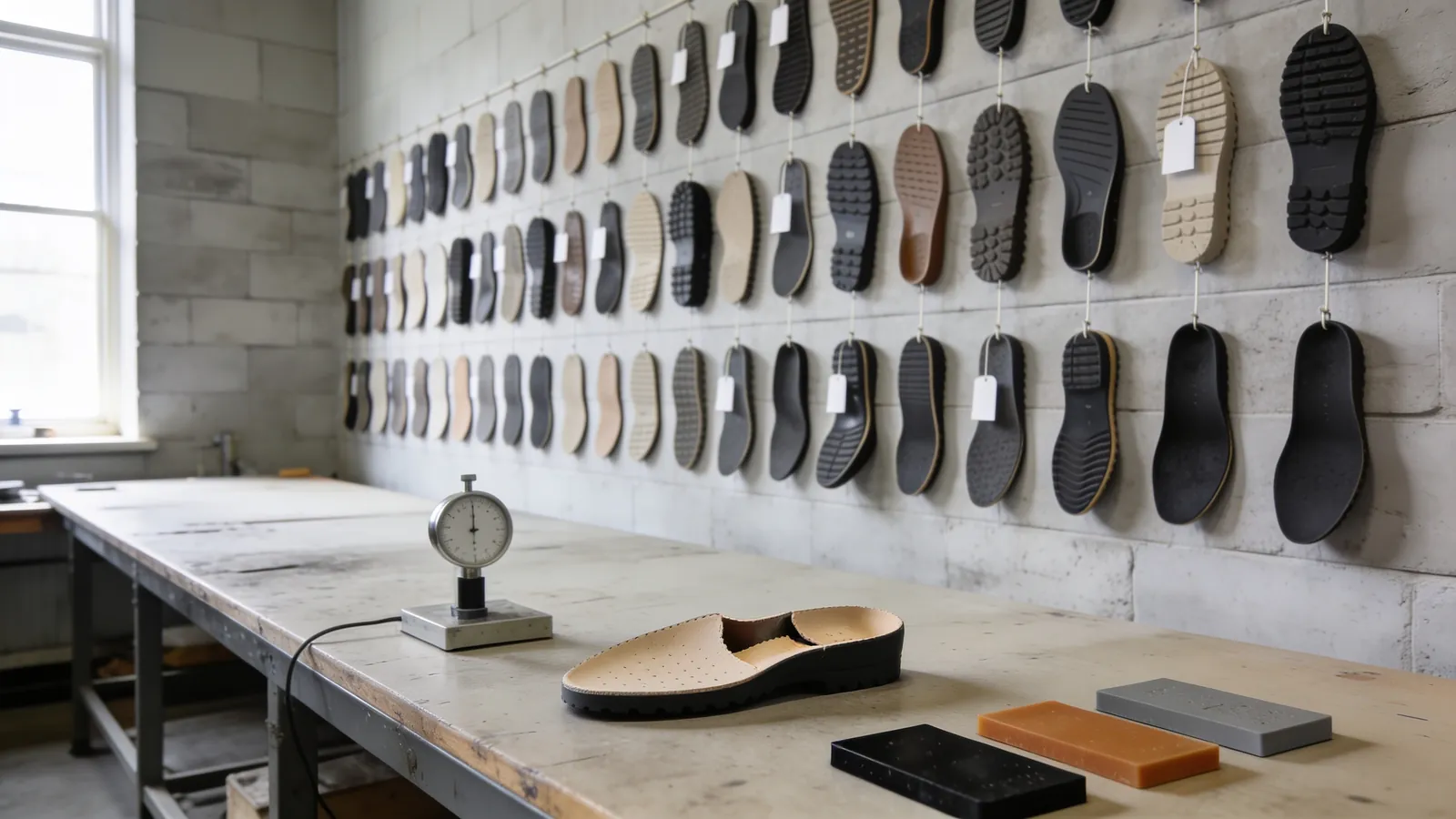

The sample room: soles hung in rows, each with its paper tag.
The sample room. Every sole on the wall left the plant with a tag like yours.

The sample room

Start with a pair you can hold.

  1. Choose the footwear and how it is built.
  2. Build the stack, layer by layer.
  3. Pick the size, the pairs and the colours.
  4. Send it, and get a tag with your sample reference.

Production from 300 pairs per colour. If your sole needs a new mould, we quote it before we cut it.

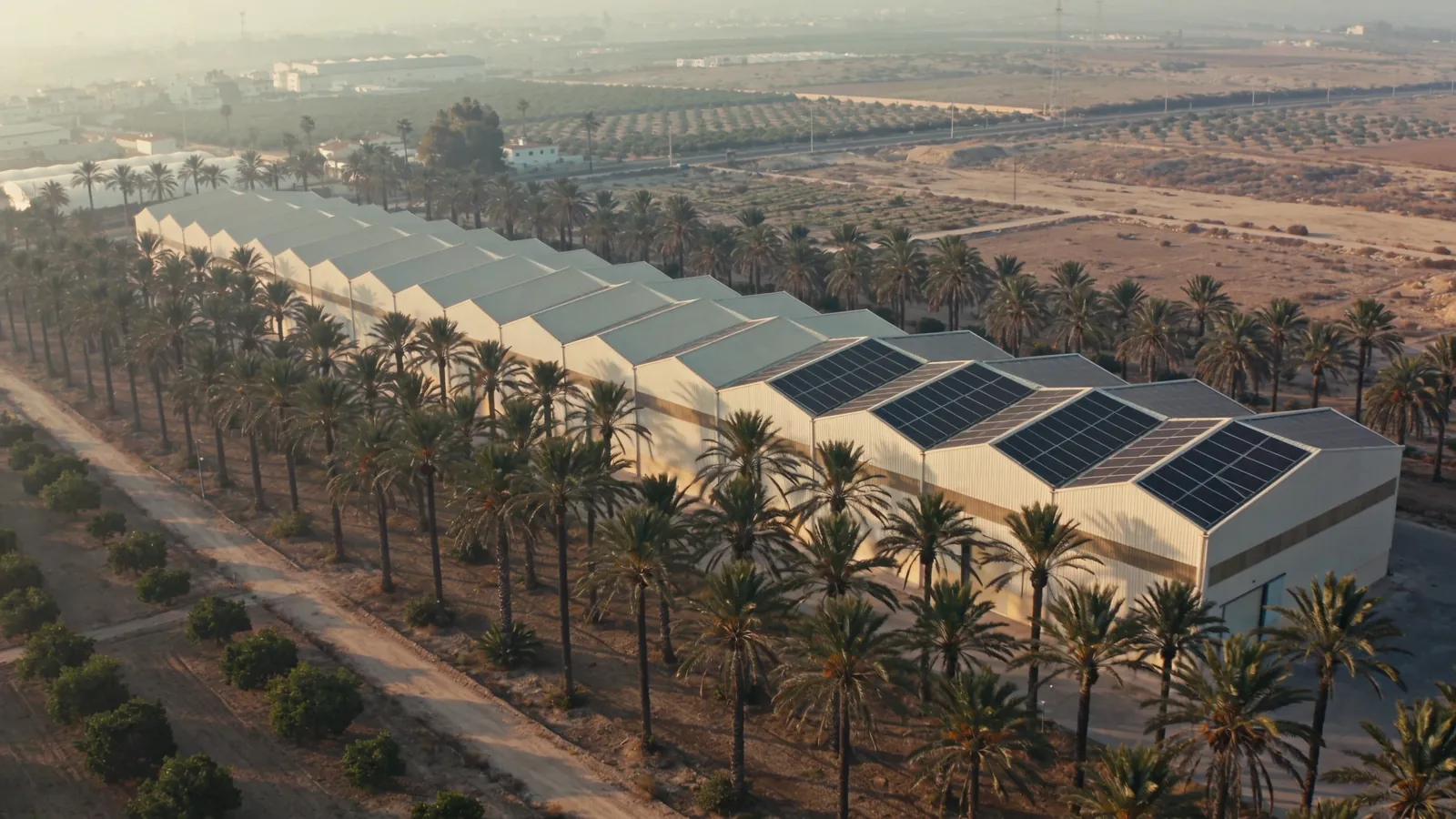

Aerial view of the plant in Elche, its sawtooth roof half covered in solar panels, among date palms.

Factory

One roof, from the mixer to the box.

We mix compounds, machine moulds and press soles in the same plant, and we can trace every pair back to its batch. A third of our catalogue compounds already carry post-industrial recycled rubber from our own offcuts.

11,000 m²under one roof, between the palm groves
6.2 millionpairs of soles a year
40 %of our power from the solar roof
ISO 9001, 14001quality and environment, audited yearly

Brands

Under the feet of 140 brands, in 22 countries.

  • Terral Trail
  • Norte Workwear
  • Brisa Running
  • Ondara
  • Puig Mountain Gear
  • Calma Shoes
  • Sierra Kids
  • Alba Safety
  • Marjal
  • Garbí Outdoor
Portrait of Marta Ferrer
We sent a last and a weight target on a Monday. Four weeks later we were testing the pair on the trail.
Marta FerrerHead of footwear development, Terral Trail
Portrait of Javier Ortuño
The compound cards save us a week on every safety boot. We know the result before the mould is cut.
Javier OrtuñoSourcing and development director, Norte Workwear
